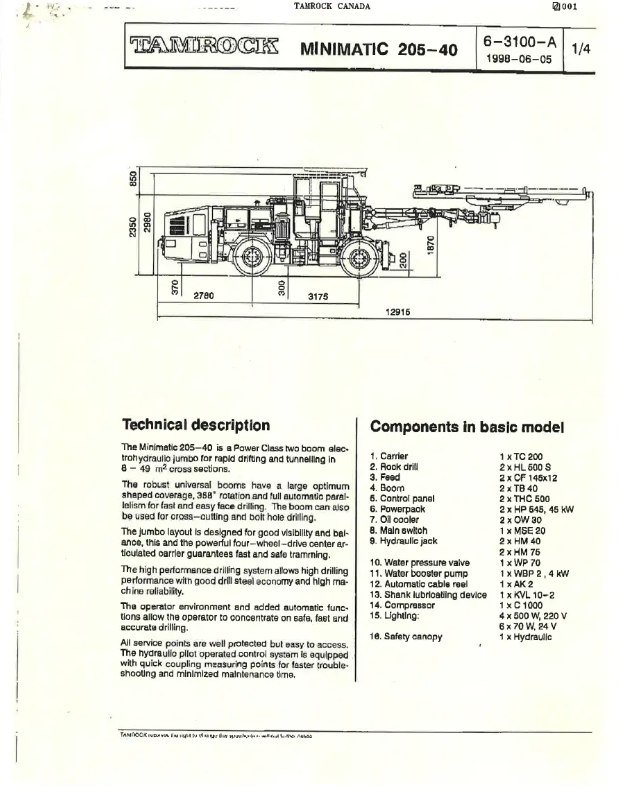

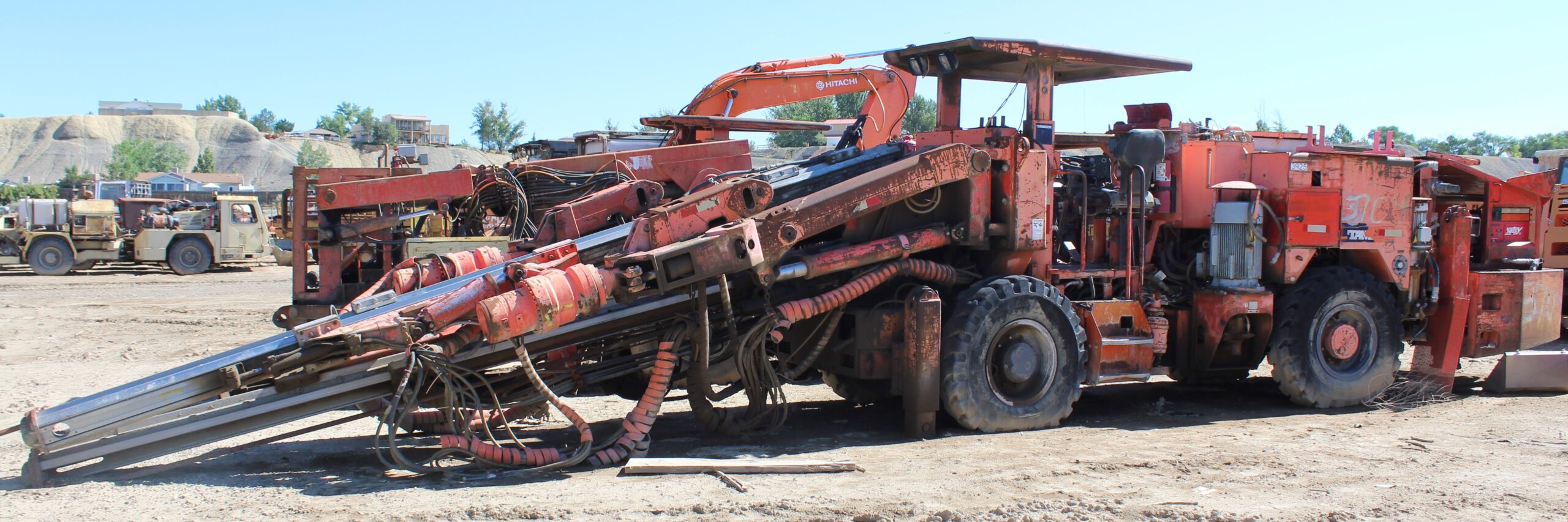

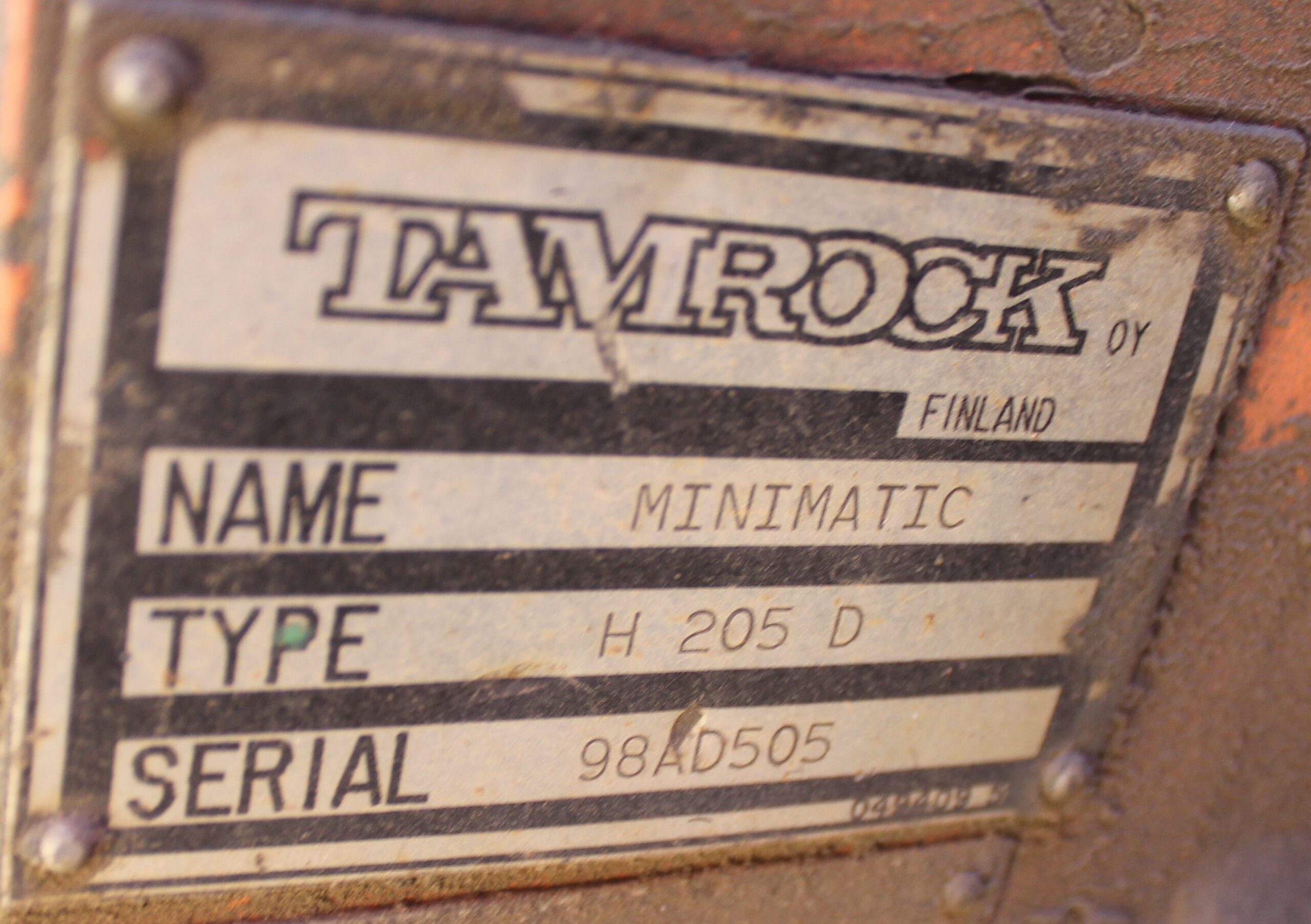

Tamrock Minimatic H 205D

Jumbo

Overview

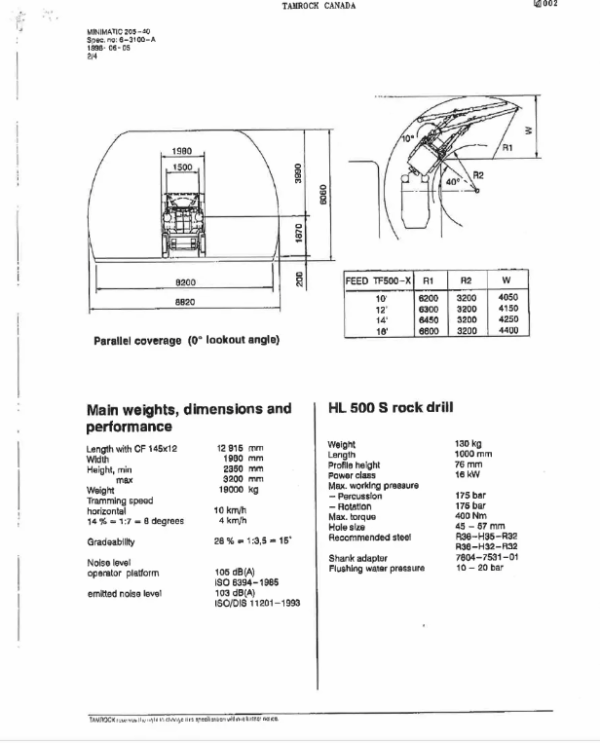

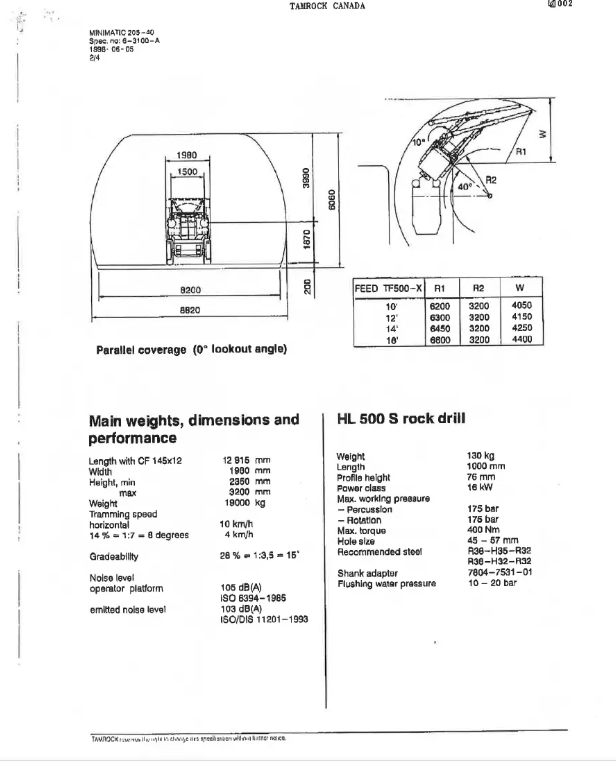

Main weights, dimensions and performance
Length with CF 145×12 : 12,915mm
Width : 1980mm
Height (min) / (max) : 2360mm / 3200mm
Tramming speed (horizontal): 10 km/h
Gradeability : 28% = 1:3, 5 = 15
Noise Level
Operator Platform : 105 dB(A) / ISO 6394-1985
Emitted Noise Level : 103 dB(A) / ISO/DIS 11201 – 1993

HL 500 S rock drill
Weight : 130kh
Length : 1000mm
Profile Height : 76mm
Power Class : 16kW
Max. working pressure
– Percussion : 175 bar
– Reduction : 175 bar
Max. Torque : 400 Nm
Hole Size : 45 – 57 mm
Recommended Steel : R36 – H35 – R32
Shank Adapter : 7804 – 7531 – 01
Flushing water pressure : 10 – 20 bar
